Name: Digital Multimeter DT830BUZ XTREME
SKU: DT830BUZ
Price: 6.9 EUR
Availability: OutOfStock

Descripción

Accuracy and precision of measurements
High quality materials
LCD screen
Measurement method: dual integral of A/D converter

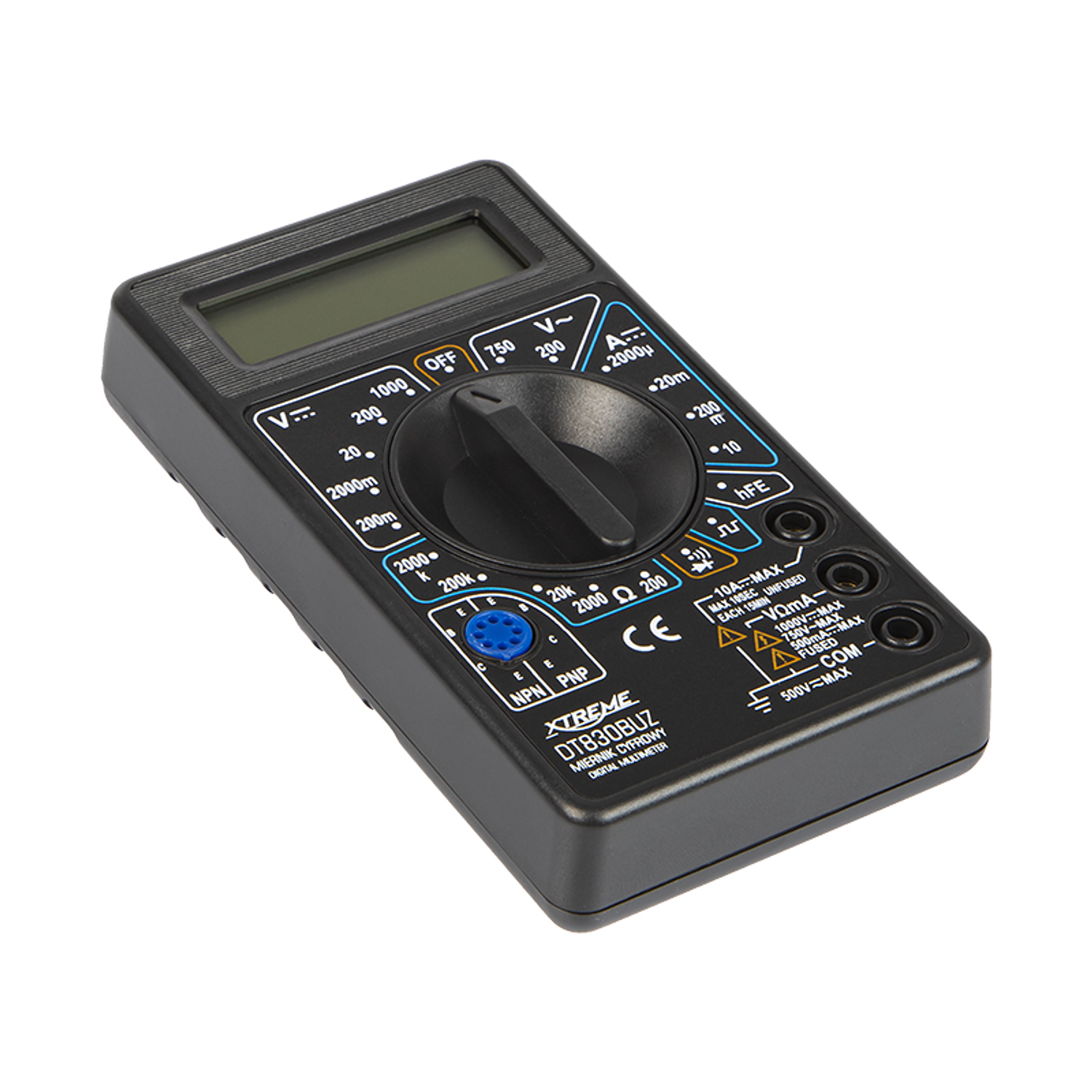

The DT830BUZ XTREME digital meter is a product that guarantees accuracy and precision. The large and clear LCD display ensures correct reading of results. The materials used in the production of the meter are of high quality, which translates into the product's durability and long use.

Power	9V battery
Screen	LCD, in the 1999 range
Sampling frequency	2 times per second
Measurement method	A/D Converter Dual Integral
Interval overshoot sign	just the number "1" on the screen
Polarity signaling	"-" is displayed for negative
Working temperature	0 degrees C ~ 30 degrees C.
Storage Temperature	-10 degrees C ~ 50 degrees C
Low battery indication	battery icon on screen
Dimensions	126x70x26mm
Weight with battery	108g
Dedicated connections	CATII 600V
DC voltage measurement	200mV - 500V in 5 ranges
AC voltage measurement	200V - 500V in 2 ranges
DC current measurement	200uA - 5A in 5 ranges
Resistance measurement	200 - 2MΩ
Capacitance measurement	no
Frequency measurement	no
Temperature measurement	no
hFE Transistor Measurement + Diode Test	Yes
Acoustic Continuity Tester	Yes
Basic accuracy	+/- (0.5% + 2 digits)
